OE-TWS-75

Thermal Imaging Weapon Sights

Thermal Weapon Sight, 75mm.

CARACTERÍSTICAS PRINCIPALES

High - performance, Auto-Nuc shutterless, silent FPA

Ergonomic, user-friendly keypad

Smooth and precise focus adjustment

Comfortable eye piece with long eyerelief

ITAR-Free system

AMOLED display

Multi-use MIL-STD-1913 side mounting bracket

Rugged housing

Optional: built-in with micro-SD card

ESPECIFICACIONES

Objective Lens

75 mm, F/1.3

Spectral Response

8-12 μm

F.P.A. Format

384X288 or 640X480

Pixel Size

17μm

Thermal Sensitivity, (min.)

<60Mk or <50Mk

Refresh Rate, (min.)

50 Hz

Optical Magnification

4.5X or 3X

Field of View

5.0°X3.7° or 8.3°X6.2°

Magn. Total w/Dig. Zoom

1X, 2X, 4X

Diopters Adjustments

-6 TO +4

Dimensions mm.

193 X 66 X 66

Weight gr.

525

Cont. Operation time

Up to 7 hours

Powered By AA battery

2xCR123 (LI./Rechargeable)

Detection of Human Figure

~2500m

Detection of Idling Car

~3380m

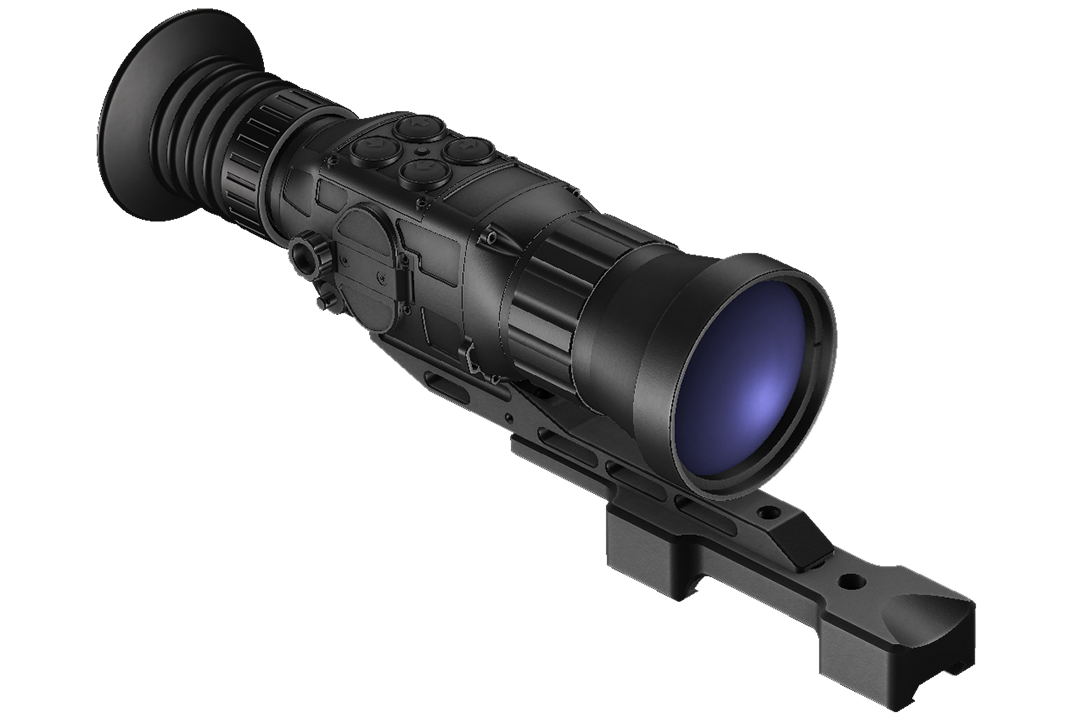

OE-TWS, is a rugged, lightweight and powerful Thermal Weapon Sight with a quick release, for military and law enforcement use.
OE-TWS, is ideal for long-range human target detection in distance of up to 2.5 km, as well as reconnaissance and surveillance, perimeter security, wildlife observation and control, and a wide variety of other applications.
While night vision technology relies on amplification of ambient light or assisting illumination, thermal devices are completely passive, sensing extremely minute temperature differentials. The rugged thermal sight combines a highly sensitive Detector with real-time image processing and lightweight, waterproof housing. Sensitive not less than 50mK, the detector’s 8-12μm spectral response ensures the widest possible thermal coverage.
