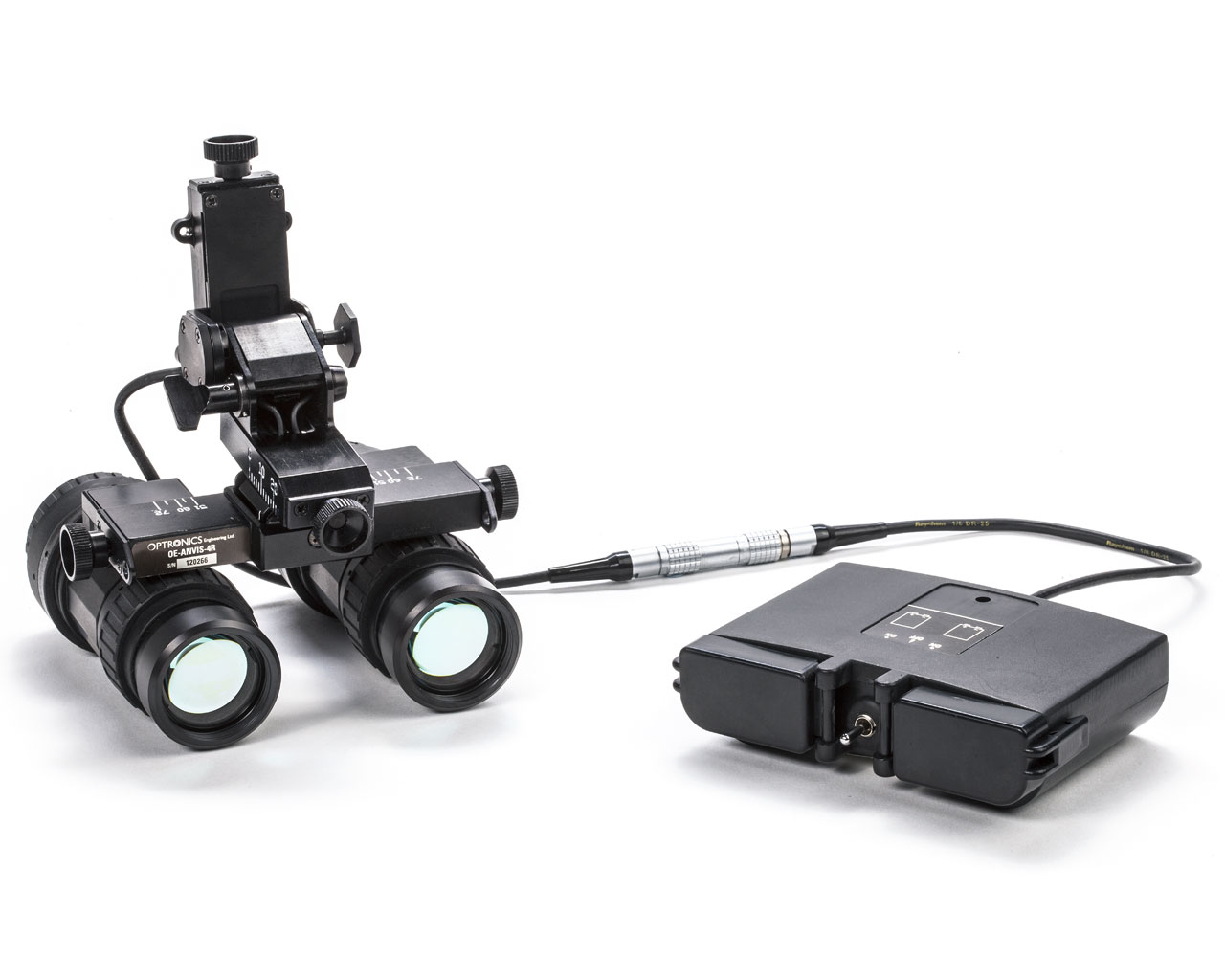

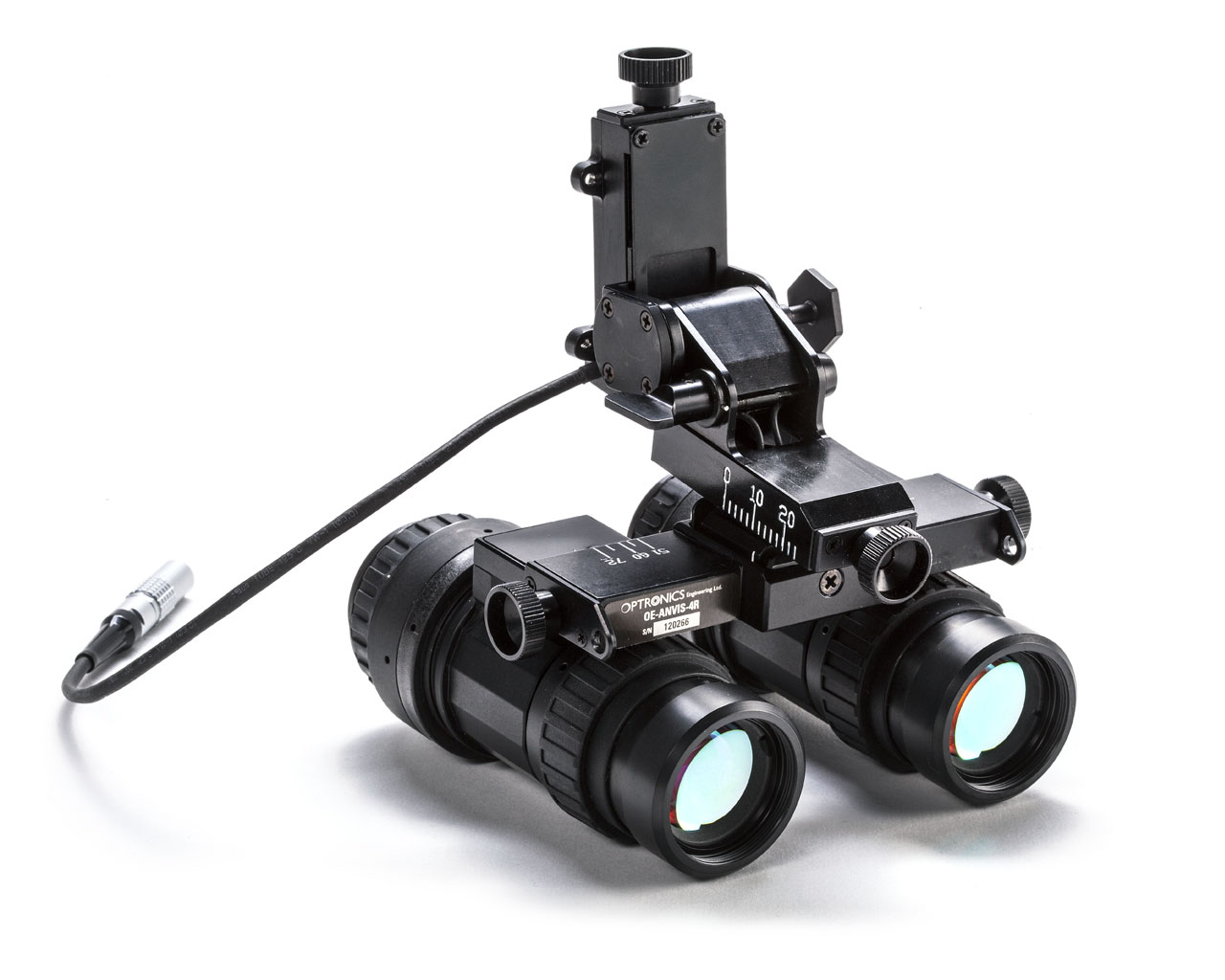

OE-ANVIS 4R

Aviator Night Vision Goggle

The OE-ANVIS-4R features binocular viewing for optimized depth perception and large 25mm eyepieces that provide improved eye relief.

KEY FEATURES

Innovative Ergonomic Design

Depth perception

Gen II+ or Gen III

Internal Low Battery

Compatible to MIL-STD Helmets

SPECIFICATIONS

Magnification

1x

Field of View

40°

Objective lens

27 mm

Interpupillary adjustment

52-72 mm

Eye relief

25 mm

Diopter Adjustment

-6 to +2

Power

1.5V. AA, Alkaline

Weight

530 g (max.)

Operating Temp.

-32°C to +52°C

OE-ANVIS 4R is a significant design improvement to the Aviator’s night vision imaging system (ANVIS). The OE-ANVIS 4R increase situational awareness improves system performance and enhances ergonomic characteristics benefiting both law enforcement and civil operators. The OE-ANVIS-4R features binocular viewing for optimized depth perception and large 25mm eyepieces that provide improved eye relief, accommodating operators wearing eyeglasses. Ergonomically designed interface controls (including inter-pupillary and vertical/fore-aft/tilt adjustments) provide improved system fields-of-view.
