High Performance FPA 384x288 or 640x480, 17 μm
High Refresh Rate: up to 50 Hz
High Resolution 800x600 AMOLED display
Shutterless and Soundless
Manual/Automatic Gain Control
Manual Brightness Control
UP to 8 hours battery life
Light Weight
Video Out
Digital Video Recorder – Optional Built-In/External
Lens number
75mm, F/1.3
FPA resolution
384x288 or 640x480
Pixel size
17μm
Optical Magnification
4.5X or 3X
Field Of View
5.0˚X3.7˚ or 8.3˚X6.2˚
Thermal sensitivity
60Mk
Refresh rate
50Hz
Digital zoom
2x and 4x
Detection of Human (m.)
~2500
Detection of Idling Car (m.)
~3300
Batteries
4pcs. AA
Operational time
Up to 8 hours
Dimensions (mm)
181x142x71
Weight (g)
930

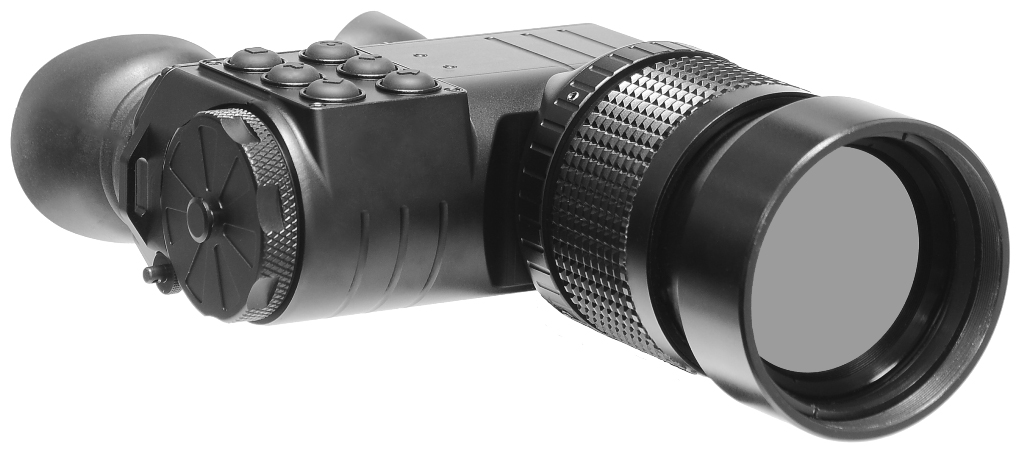

The OE-TB, Thermal Imaging Binoculars, enables law enforcement and military personnel to see heat signatures of objects, people, and other sources. OE-TB detects extremely small differences in temperature, so that officers can distinguish people from their immediate surroundings. Needing no light to operate, the OE-TB generates high-quality images 24 hours, during the day or at night, even though smoke and fog. Compare that to conventional night vision equipment, which requires light or special illuminators and is incapacitated by smoke, fog, and often other particulates. While darkness and camouflage can defeat night vision, suspects cannot hide from OE-TB. Their own body heat gives them away. The OE-TB thermal imager is a powerful tool for tactical, surveillance and scene assessment applications. Its small size, light weight and ability to be weapon mounted make the OE-TB simple and yet, very effective in field conditions.
