High-Resolution 12µm Thermal Core Options
Extended Human Target Detection Range
High-Performance, Auto-NUC Shutterless & Silent Operation
High-Resolution AMOLED Display
Multi-Pattern Electronic Reticle Selection
AMOLED display
Optional: DVR (Internal MicroSD), LRF Compatibility, Digital Compass, Inclinometer & Gyroscope
Ruggedized MIL-STD Housing
Objective Lens
25 mm, F/1.0
Spectral Response
8-12 μm
F.P.A. Format
384X288 | 640X480
Pixel Size
17μm
Thermal Sensitivity, (min.)
<60Mk or <50Mk
Refresh Rate, (min.)
50 Hz
Optical Magnification
1.5X or 1X
Field of View
14.9°X11.2° | 24.5°X18.5°
Magn. Total w/Dig. Zoom
1X, 2X, 4X
Diopters Adjustments
-6 TO +4
Dimensions mm.
140 X 60 X 59
Weight gr.
365
Cont. Operation time
Up to 7 hours
Powered By AA battery
2xCR123 (LI./Rechargeable)
Detection of Human Figure
~830m

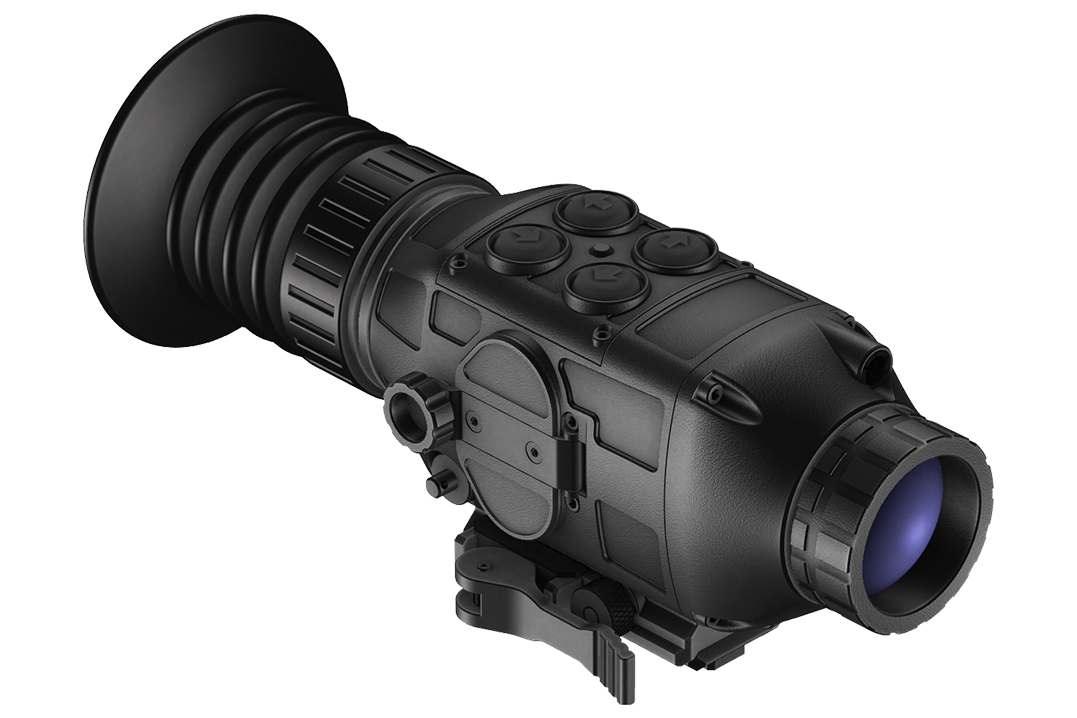

OE-TWS, is a rugged, lightweight and powerful Thermal Weapon Sight with a quick release, for military and law enforcement use.
OE-TWS, is ideal for long-range human target detection in distance of up to 2.5 km, as well as reconnaissance and surveillance, perimeter security, wildlife observation and control, and a wide variety of other applications.
While night vision technology relies on amplification of ambient light or assisting illumination, thermal devices are completely passive, sensing extremely minute temperature differentials. The rugged thermal sight combines a highly sensitive Detector with real-time image processing and lightweight, waterproof housing. Sensitive not less than 50mK, the detector’s 8-12μm spectral response ensures the widest possible thermal coverage.
